Fire Sprinkler Systems

Automatic and reliable – Sparkline Fire’s sprinkler systems activate instantly to suppress fire and protect lives and property.

Fire Sprinkler Systems

Our advanced sprinkler solutions are engineered to respond quickly and efficiently in fire emergencies, reducing damage and increasing safety.

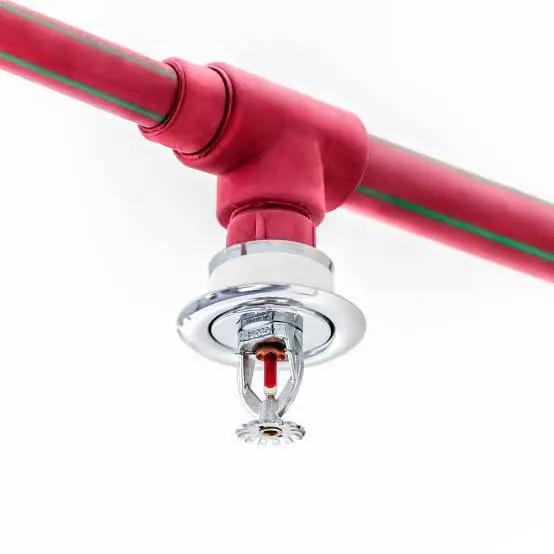

Pendent Sprinkler Head

Pendent Sprinkler Head

The most widely used sprinkler head, mounted from ceilings and designed to discharge water downward in a circular spray pattern once a preset temperature is reached. Ideal for enclosed public and commercial spaces including offices, hotels, and retail outlets.

Key Features

Temperature-sensitive glass bulb activation
Uniform circular spray coverage
Chrome-plated brass construction
Corrosion-resistant with aesthetic finish
Available in multiple K-factors and temperature ratings

Product Images

Fire Sprinkler Front View
Fire Sprinkler Side View
Most Effective For
Office
Spaces
Shopping
Malls
Hotels
Retail
Shops
Technical Specifications
TypePendent
MaterialBrass with Chrome Finish
Temperature Rating68°C / 79°C / 93°C
K-FactorK80 (5.6)
Response TypeStandard / Quick Response
Spray CoverageUp to 16 sq. meters
Connection Size1/2” or 3/4” BSP/NPT
FinishChrome / Brass / White
ComplianceUL Listed / FM Approved
Ideal Use

Ideal for commercial buildings, malls, hospitality zones, and public utilities

Offices

Retail

Hotels

Common Areas

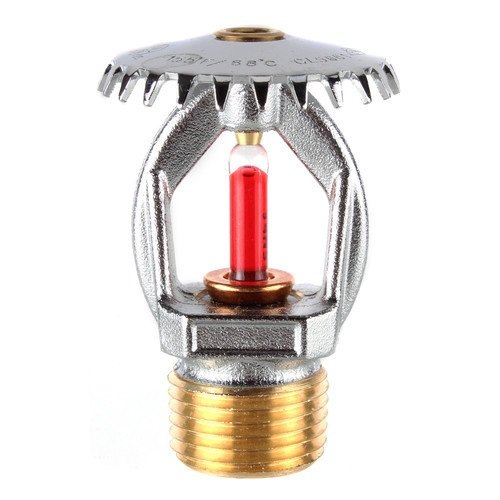

Upright Sprinkler Head

Upright Sprinkler Head

The Upright Sprinkler Head is engineered for areas where structural obstructions prevent ceiling-mounted designs. Installed in upward-facing orientation, it ensures efficient fire suppression by spraying water upward and then downward in a hemispherical pattern. Commonly used in warehouses, mechanical rooms, and industrial spaces.

Key Features

Upward discharge for obstructed ceilings
Heat-sensitive glass bulb activation
Robust brass construction with corrosion resistance
Suitable for rugged industrial use
Available in various temperature ratings
Most Effective For
Warehouses
Industrial
Facilities
Mechanical
Rooms
High-Rack
Storage
Technical Specifications
TypeUpright
MaterialBrass / Bronze
Temperature Ratings68°C / 93°C / 141°C
K-FactorK80 (5.6)
MountingCeiling (Upward Facing)
FinishNatural Brass / Chrome / White
ActivationGlass Bulb (Standard or Quick Response)
Thread Size1/2” or 3/4” BSP/NPT
ComplianceUL Listed / FM Approved
Ideal Use

Engineered for high-ceiling, obstructed, or industrial spaces where pendent sprinklers are not practical

Warehouses

Mechanical Rooms

Logistics Areas

Industrial Zones

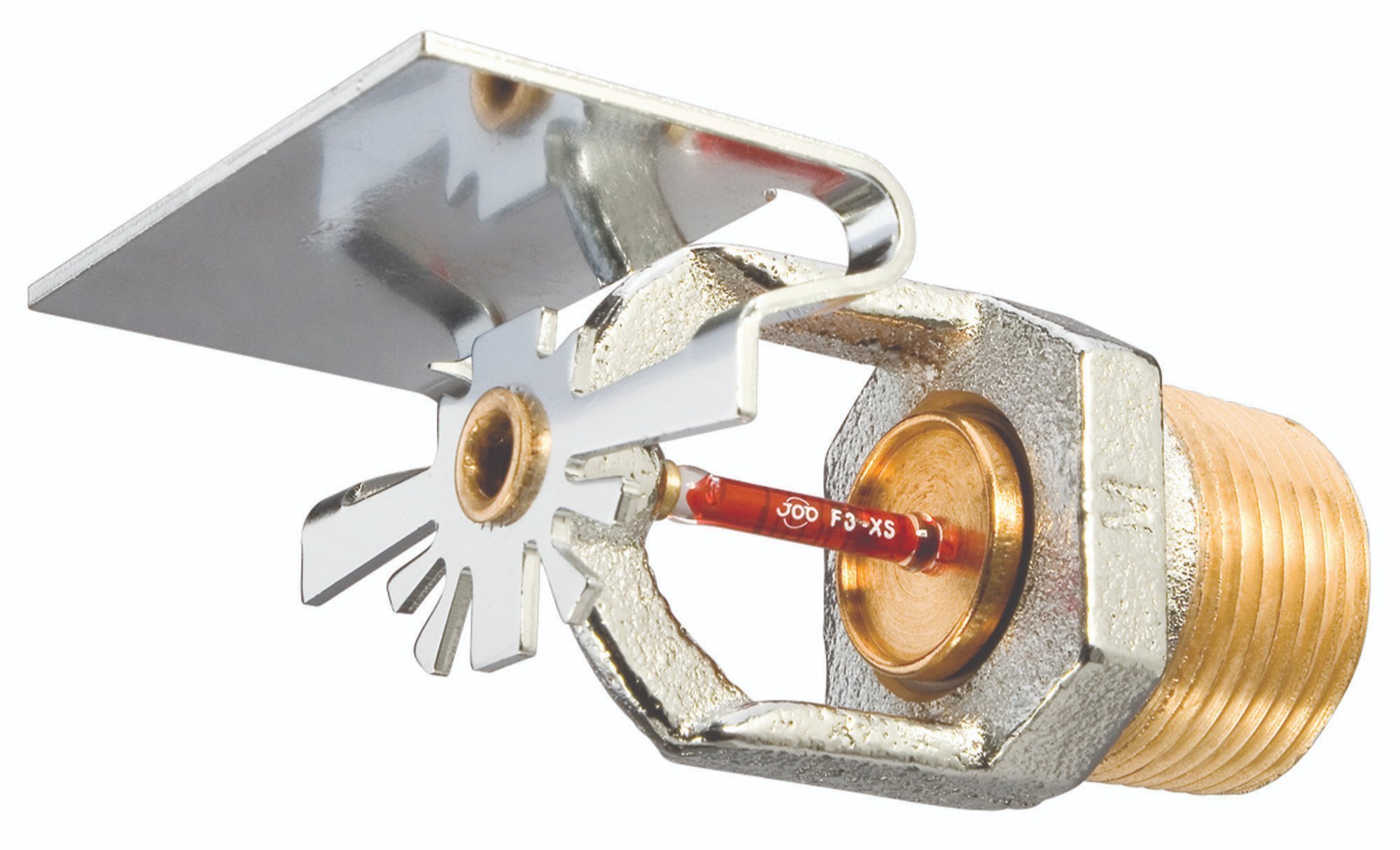

Sidewall Sprinkler Head

Sidewall Sprinkler Head

Sidewall Sprinkler Heads are wall-mounted units designed to spray water in a crescent or semi-circular pattern, making them ideal for locations without ceiling access. These sprinklers are commonly installed in hotel rooms, corridors, and small commercial spaces, ensuring effective coverage along walls and ceilings.

Key Features

Wall-mounted design for limited ceiling access
Semi-circular discharge pattern for wall-to-room coverage
Compact and aesthetic appearance
Glass bulb activation mechanism
Available in multiple temperature and K-factor options
Most Effective For
Corridors
Hotel
Rooms
Small
Offices
Lobbies
Technical Specifications
TypeSidewall
MaterialBrass with Chrome Finish
Temperature Ratings68°C / 79°C / 93°C
K-FactorK80 (5.6)
MountingWall-mounted (horizontal discharge)
ActivationGlass Bulb
Thread Size1/2” or 3/4” BSP/NPT
FinishChrome / Brass / White
ComplianceUL Listed / FM Approved
Ideal Use

Perfect for spaces with architectural or ceiling limitations

Corridors

Hotels

Offices

Small Spaces
