Hose Reels & Cabinets
Organized, reliable, and easy to deploy — Sparkline Fire’s reels and cabinets keep fire safety at your fingertips.
Hose Reels & Cabinets
Explore compact, corrosion-resistant, and easy-access storage solutions for your firefighting hoses and equipment.

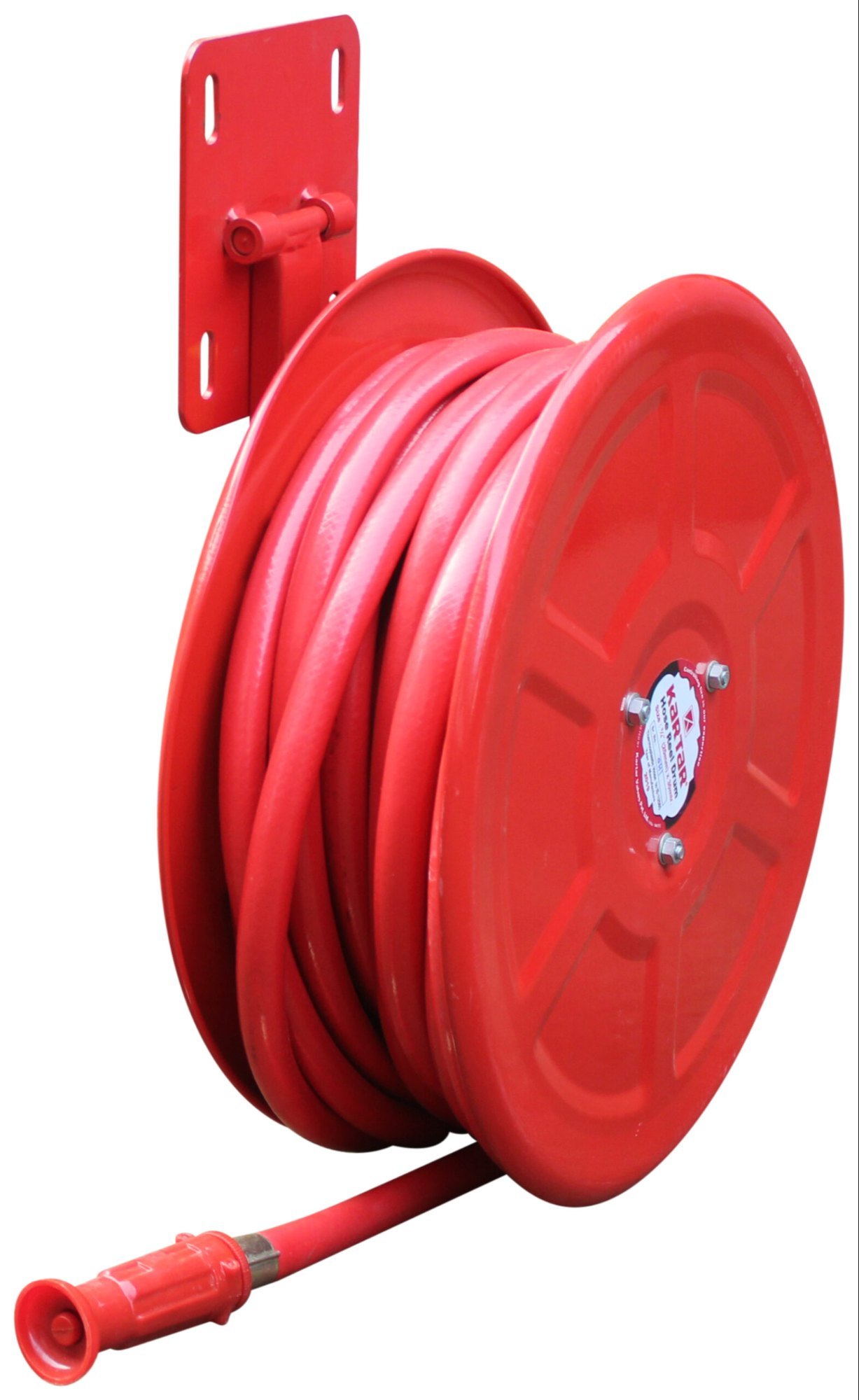

Manual Hose Reel
This manually operated hose reel is ideal for quick deployment in emergency situations. Constructed with powder-coated steel, it ensures long-lasting durability and smooth hose unwinding. Compatible with 19mm and 25mm hoses, it is a reliable solution for commercial, industrial, and institutional fire protection setups.
Key Features
Most Effective For
Hose Access
Fire Zones
Fire Points
Facilities
Technical Specifications
| Material | Powder-Coated Mild Steel |
|---|---|
| Mounting | Wall-Mounted with Pivot Arm |
| Compatible Hose Sizes | 19mm and 25mm |
| Reel Diameter | Approx. 470 mm |
| Working Pressure | 12 bar max |
| Inlet Connection | ¾" or 1" BSP Male |
| Swivel Arm | 180° Adjustable |
| Color | Red (RAL 3000) |
Ideal Use
Offices, Factories, Schools, Hospitals, Shopping Malls
Commercial
Hospital
Malls
Institutes
Automatic Hose Reel
Designed for convenience and speed, the Automatic Hose Reel initiates water flow automatically as the hose is pulled. Equipped with a spring-rewind mechanism, it ensures hassle-free retraction and storage. Fully compliant with IS standards, this unit is perfect for high-rise buildings, shopping malls, and other commercial indoor installations.
Key Features
Most Effective For
Buildings
Commercial Zones
Deployment
Systems
Technical Specifications
| Material | Powder-Coated Mild Steel |
|---|---|
| Operation | Automatic Water Flow on Hose Pull |
| Reel Diameter | 480 mm approx. |
| Hose Compatibility | 19mm / 25mm dia hose |
| Mounting | Wall-Mounted Fixed Type |
| Inlet Connection | 1" BSP Male |
| Standard Compliance | IS:884 |
| Finish | Red (RAL 3000) |
Ideal Use
Shopping Malls, Residential Towers, Hospitals, Educational Institutions
Hospitals
Malls
Apartments
Institutes

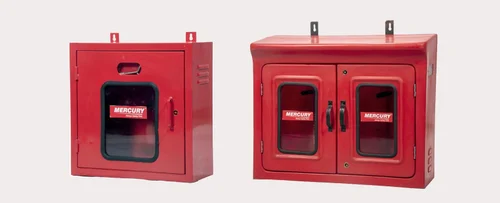

Fire Hose Cabinet (Single/Double Door)
Constructed from powder-coated mild steel or stainless steel, the Fire Hose Cabinet is designed to store hoses, nozzles, and firefighting accessories. Available in single and double door versions with toughened glass for visibility and fast access during emergencies.
Key Features
Most Effective For
Fire Hoses
Access
Safety
Technical Specifications
| Material | Mild Steel / Stainless Steel 304 |
|---|---|
| Door Type | Single or Double Door |
| Glass | Toughened Glass View Panel |
| Coating | Red Powder-Coated Finish |
| Mounting | Wall-Mountable |
| Locking | Cam Lock with Key |
| Dimensions | Customized as per order |
| Usage | Indoor/Outdoor |
Ideal Use
Offices, Factories, Warehouses, Shopping Malls, Institutions
Offices
Warehouses
Malls
Institutes
