Notification Devices
Instant alerts that command attention – Sparkline Fire’s alarms and strobes keep everyone informed in an emergency.
Fire Alarm & Notification Devices
Alert systems engineered to provide loud, clear, and visible emergency signals across facilities.

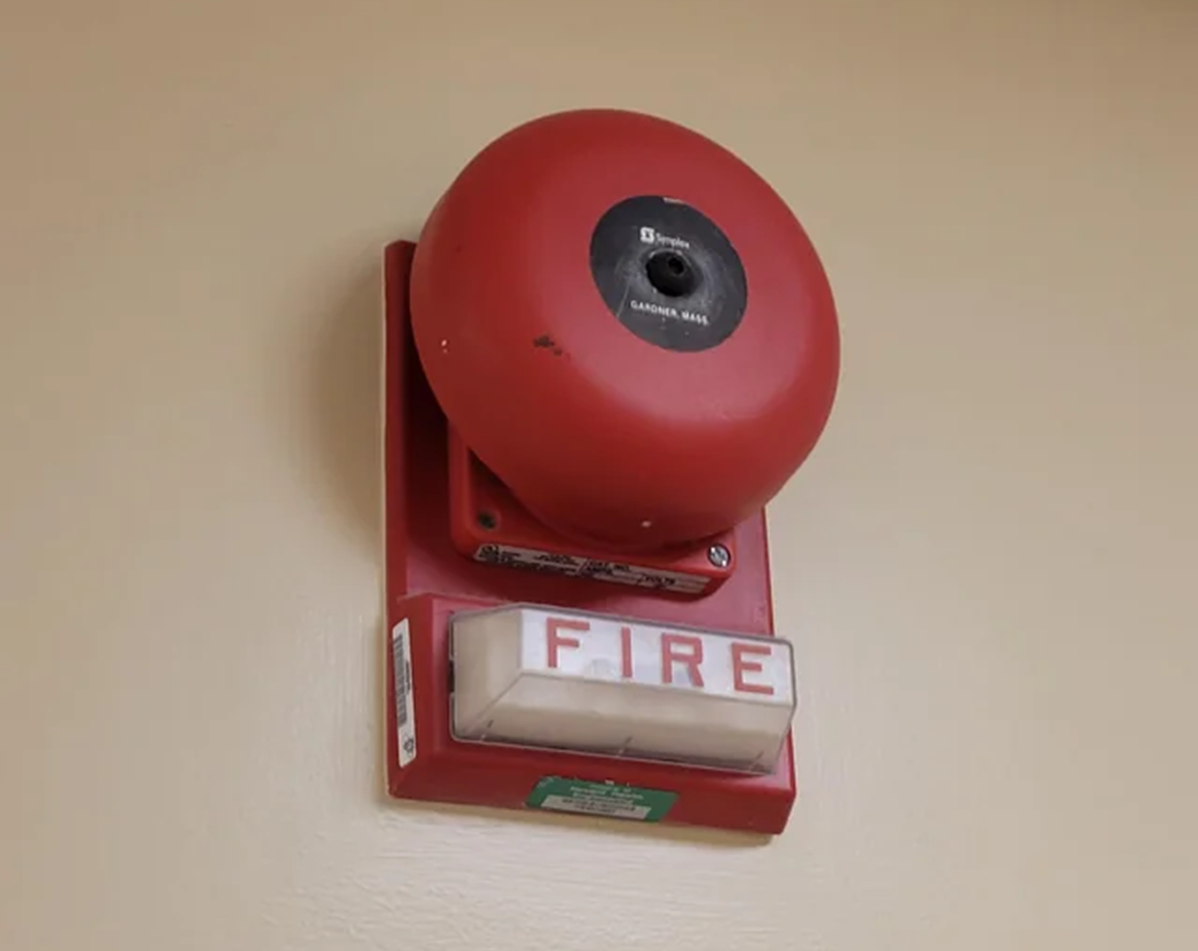

Fire Alarm Bell
A high-decibel mechanical bell designed for immediate and unmistakable alert during fire emergencies. Built for reliability and clarity in noisy or large environments, it’s ideal for industrial, commercial, and institutional installations.
Key Features
Best Suited For
Technical Specifications
| Model | FAB-150 |
|---|---|
| Sound Level | ≥ 90 dB at 1 meter |
| Operating Voltage | 24V DC / 220V AC (optional) |
| Current Consumption | 20–30 mA |
| Bell Diameter | 6" / 150 mm |
| Material | Electroplated Steel |
| Mounting | Wall Mounted |
| Operating Temp | -10°C to +55°C |
| Protection Class | IP33 / IP54 (optional) |
Ideal Use
Designed for rapid alerting in high-traffic or high-noise zones.
Factories
Institutions
Shops
Commercial Sites
Strobe Siren Alarm
Combines intense strobe lighting with a loud siren for optimal warning in high-noise or low-visibility environments. Perfect for factories, warehouses, and areas where clear alerts are crucial—even for the hearing-impaired.
Key Features
Most Effective In
Technical Specifications
| Model | SSA-100 |
|---|---|
| Sound Output | ≥ 100 dB at 1 meter |
| Light Type | Red LED Strobe |
| Operating Voltage | 12V / 24V DC |
| Current Consumption | ≤ 150 mA |
| Material | ABS Plastic + Polycarbonate Dome |
| Dimensions | 90mm × 125mm |
| Mounting | Wall or Ceiling |
| Ingress Protection | IP65 Rated |
| Operating Temp | -10°C to +50°C |
Ideal Use
Designed for alerting in visually or audibly challenging spaces.
Loading Bays
Parking Zones
Machine Floors
Industrial Units
