Hose Nozzles
Delivering precision and control – explore Sparkline Fire’s high-performance fire hose nozzles.
Our Hose Nozzles
Designed for effective stream control, reliability, and durability in critical firefighting situations.
Jet/Spray Nozzle
A dual-function nozzle with adjustable flow for both powerful jet and fine spray patterns. Made from high-grade aluminum or gunmetal, it allows firefighters to control the water output precisely during high-pressure operations. Ideal for various firefighting situations where adaptability and accuracy are required.
Key Features
Most Effective For
Jet Mode
Spray Mist
Targeting
Applications
Technical Specifications
| Material | Aluminum Alloy / Gunmetal |
|---|---|
| Connection | 2.5” Male Instantaneous |
| Operating Pressure | 6 – 12 bar |
| Flow Rate | 250–550 LPM |
| Spray Angle | 30°–90° Adjustable |
| Finish | Polished / Powder Coated |
| Weight | 1.2–2.0 kg |
Ideal Use
Fire Departments, Industrial Facilities, Fuel Stations, Airports
Fire Services
Industrial Use
Petrol Bunks
Airports

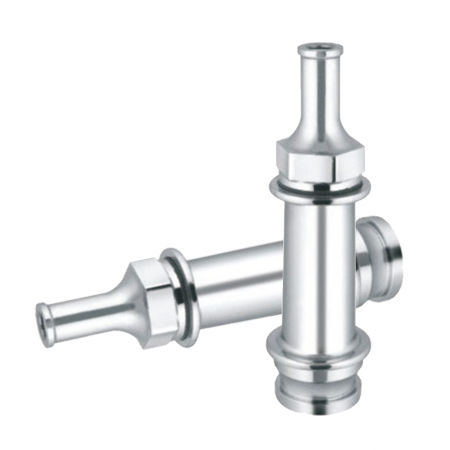

Short Branch Pipe Nozzle
A widely used firefighting nozzle compatible with standard delivery hoses. It delivers a concentrated jet stream, ensuring extended reach and consistent water flow. Ideal for both indoor and outdoor firefighting applications, providing reliable performance under high-pressure situations.
Key Features
Most Effective For
Water Jet
Firefighting
Fire Nozzling
Operations
Technical Specifications
| Material | Gunmetal / Aluminum Alloy |
|---|---|
| Size | 2.5" Male Instantaneous |
| Discharge Type | Straight Jet Stream |
| Working Pressure | Up to 12 bar |
| Flow Rate | 400–500 LPM |
| Weight | 1.3–2.5 kg (depending on material) |
| Finish | Polished or Painted |
Ideal Use
Fire Trucks, Fire Stations, Industrial Fire Cabinets, Outdoor Fire Zones
Fire Vehicle
Fire Station
Industrial
Outdoor Sites

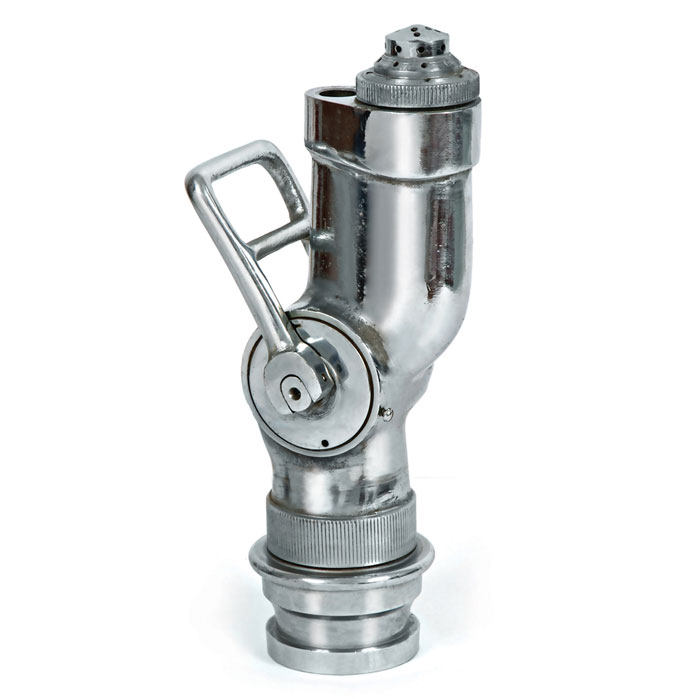

Fog Nozzle
Engineered for high-efficiency fire suppression, the fog nozzle produces a fine mist that absorbs heat and reduces smoke. It is perfect for enclosed spaces and is corrosion-resistant, lightweight, and easy to operate under pressure.
Key Features
Most Effective For
Areas
Suppression
Reduction
Rooms
Technical Specifications
| Material | Aluminum Alloy / Brass |
|---|---|
| Size | 2.5" Male Instantaneous |
| Spray Pattern | Jet to Wide Fog Adjustable |
| Working Pressure | Up to 10 bar |
| Flow Rate | 400–600 LPM |
| Weight | 2.0–3.0 kg |
| Finish | Polished or Powder Coated |
Ideal Use
Data Centers, Server Rooms, Ships, Warehouses, Confined Equipment Areas
Data Rooms
Server Racks
Warehouses
Ships
