Pillar Hydrants
Essential for firefighting operations – Sparkline Fire’s hydrants deliver immediate, powerful water access on demand.
Pillar Hydrants
Our range of durable and efficient hydrants ensures rapid water supply for fire protection in both urban and industrial environments.

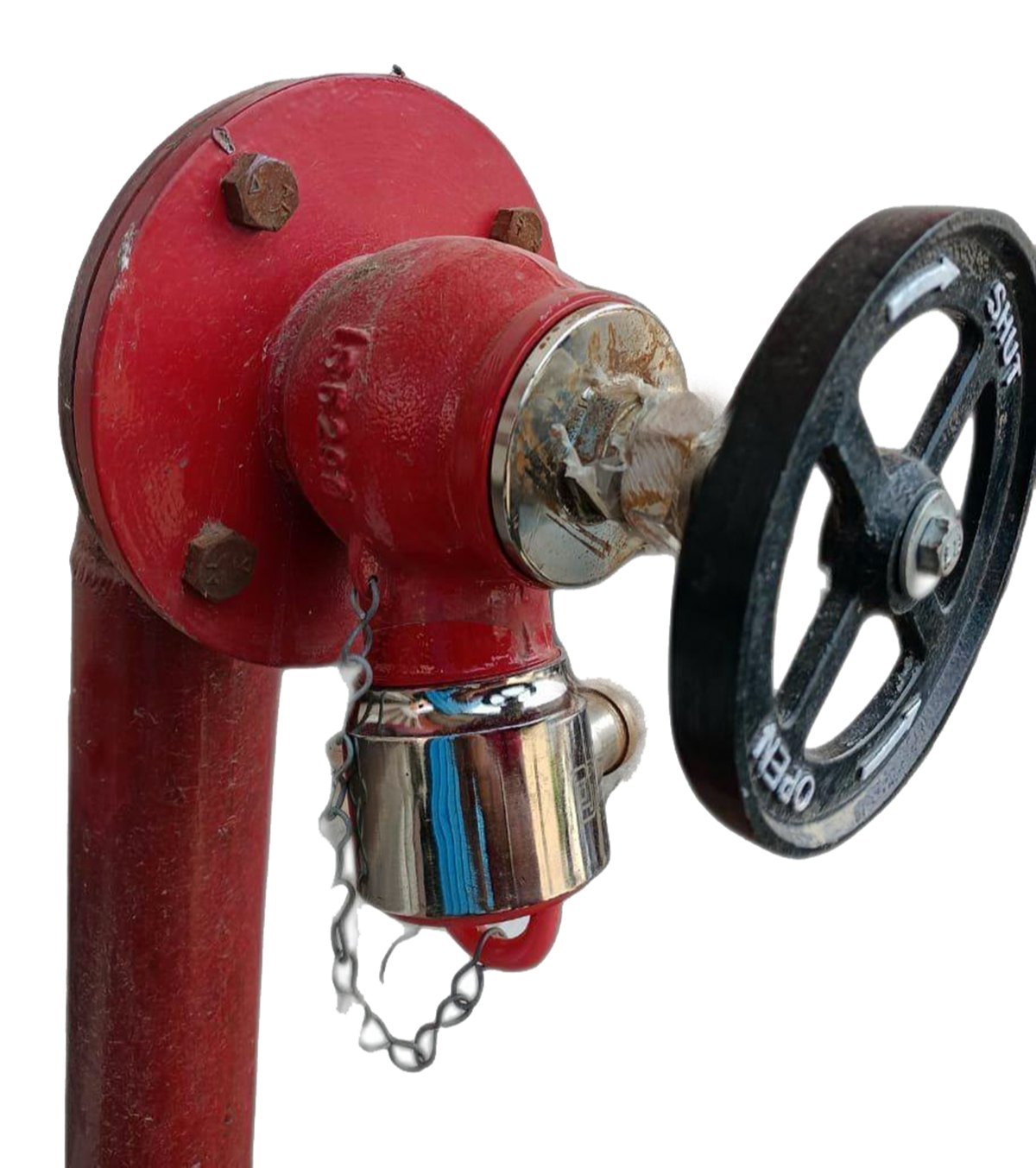

Single Outlet Pillar Hydrant
A compact and efficient fire hydrant with a single outlet designed for fast water discharge in emergency scenarios. Built with high-grade materials and corrosion-resistant coatings, it is ideal for small commercial complexes, gated communities, and urban fire networks.
Key Features
Most Effective For
Commercial Buildings
Communities
Sites
Fire Grids
Technical Specifications
| Type | Pillar Hydrant - Single Outlet |
|---|---|
| Outlet Size | 63 mm (Female Instantaneous) |
| Material | Cast Iron / Ductile Iron |
| Operating Pressure | Up to 12 bar |
| Coating | Fusion bonded epoxy / Red enamel |
| Inlet Connection | Flanged / BSP Threaded |
| Compliance | IS: 5290 / BS: 750 |
| Installation | Above-Ground / Ground-Level |
Ideal Use
Designed for fast access in smaller networks where a single water source is sufficient
Gated Societies
Small Shops
Industrial Zones
Water Utility Areas

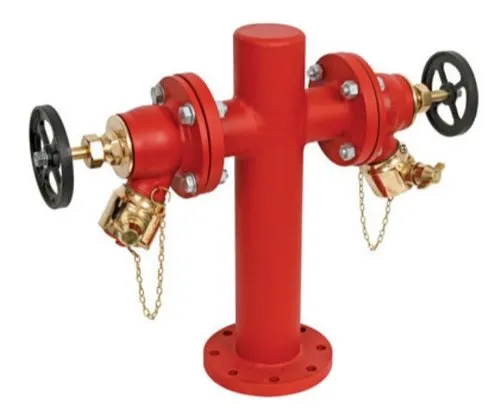

Double Outlet Pillar Hydrant
The Double Outlet Pillar Hydrant is engineered for high-capacity water discharge during firefighting operations. With two independent outlets, it allows simultaneous operation of multiple hoses, making it ideal for large-scale fire protection systems in airports, industrial zones, and high-rise buildings.
Key Features
Most Effective For
Complexes
Buildings
Zones
Technical Specifications
| Type | Pillar Hydrant - Double Outlet |
|---|---|
| Outlet Size | 2 x 63 mm (Female Instantaneous) |
| Material | Cast Iron / Ductile Iron |
| Operating Pressure | Up to 12 bar |
| Inlet Connection | Flanged / Threaded |
| Surface Coating | Red Epoxy Coating / Fusion Bonded Epoxy |
| Shut-Off Mechanism | Internal Valve System |
| Compliance | IS: 5290 / BS: 750 |
| Installation | Above-Ground / Ground-Level |
Ideal Use
Perfect for facilities requiring quick and large-volume water supply access points
Airports
Factories
Towers
Commercial
Underground Hydrant
The Underground Hydrant is installed below ground level and accessed via a hydrant pit cover. Ideal for urban streets, walkways, and landscaped areas where above-ground visibility is undesirable, while still offering full firefighting functionality with easy valve access.
Key Features
Most Effective For
Sidewalks
Complexes
Zones
Areas
Technical Specifications
| Type | Underground Fire Hydrant |
|---|---|
| Outlet Size | 63 mm Female Instantaneous |
| Material | Cast Iron / Ductile Iron |
| Operating Pressure | Up to 12 bar |
| Coating | Fusion Bonded Epoxy (FBE) |
| Access | Surface Box or Pit Cover |
| Compliance | IS: 909 / IS: 5290 |
| Installation | Below Ground Level |
Ideal Use
Discreet yet powerful hydrant solution for urban and architectural environments
Landscapes
Retail Areas
Footpaths
Smart Cities
