Monitors & Nozzles

High-capacity control – Sparkline Fire’s monitors and nozzles ensure superior reach and precise fire targeting.

Monitors & Nozzles

Engineered for maximum reach and flow control, our monitors and nozzles provide tactical firefighting solutions for industrial applications.

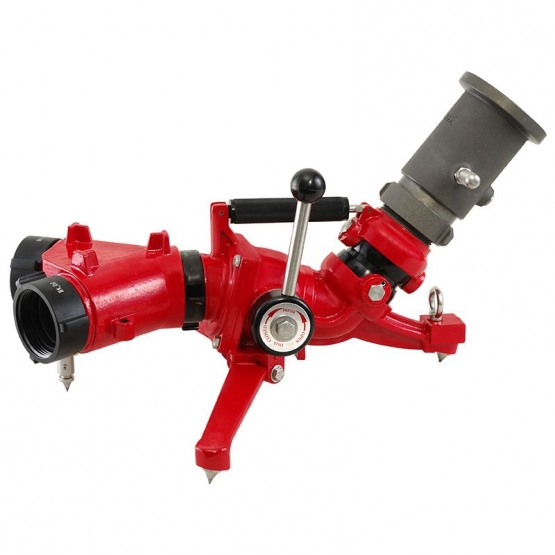

Portable Fire Monitor

This lightweight, ground-based fire monitor allows for quick deployment and efficient large-scale firefighting. With fully adjustable vertical and horizontal nozzles, it provides powerful, long-range water or foam discharge—ideal for hazardous storage areas, tank farms, and industrial facilities.

Key Features

Lightweight and portable with folding legs

360° horizontal rotation and wide vertical sweep

Foam or water operation capability

Brass or aluminum alloy corrosion-resistant construction

High flow capacity with jet/spray nozzle options

Most Effective For

Fuel
Storage Yards

Refineries

Tank Farms

Chemical
Facilities

Technical Specifications

Material	Aluminum / Brass
Inlet Size	2.5" / 4" BSP / Flanged
Flow Rate	Up to 1750 LPM
Rotation	360° Horizontal, 30°–70° Vertical
Nozzle Type	Jet / Spray Adjustable
Mounting	Tripod Foldable Base
Weight	15–20 kg (Approx.)
Operating Pressure	7 to 10 bar

Ideal Use

Large Facilities, Oil Terminals, Petrochemical Yards, Warehouses

Fuel Terminals

Emergency Fires

Warehouses

Storage Yards

Fixed Fire Monitor

Mounted permanently on hydrant lines or fire platforms, this high-capacity monitor is engineered for fixed protection of large hazardous zones. It can be operated manually or electrically and delivers targeted, high-pressure streams over long distances—perfect for jetties, tank farms, refineries, and aircraft hangars.

Key Features

Fixed mounting for continuous area protection

Manual or electric remote control operation

360° rotation and vertical tilting

Foam or water application options

Heavy-duty corrosion-resistant construction

Most Effective For

Tank Farms

Jetty
Protection

Aircraft
Hangars

Oil Refineries

Technical Specifications

Material	Aluminum / SS / Gunmetal
Inlet Size	3" or 4" Flanged
Flow Rate	Up to 3500 LPM
Horizontal Rotation	360°
Vertical Movement	30° to 70°
Nozzle Options	Jet / Spray / Foam
Mounting Type	Flanged Base
Control	Manual / Remote Electric
Operating Pressure	7 to 12 bar

Ideal Use

Refineries, Aviation Facilities, Tank Farms, Coastal Jetties

Oil Depots

Air Hangars

Marine Jetties

Industrial Plants

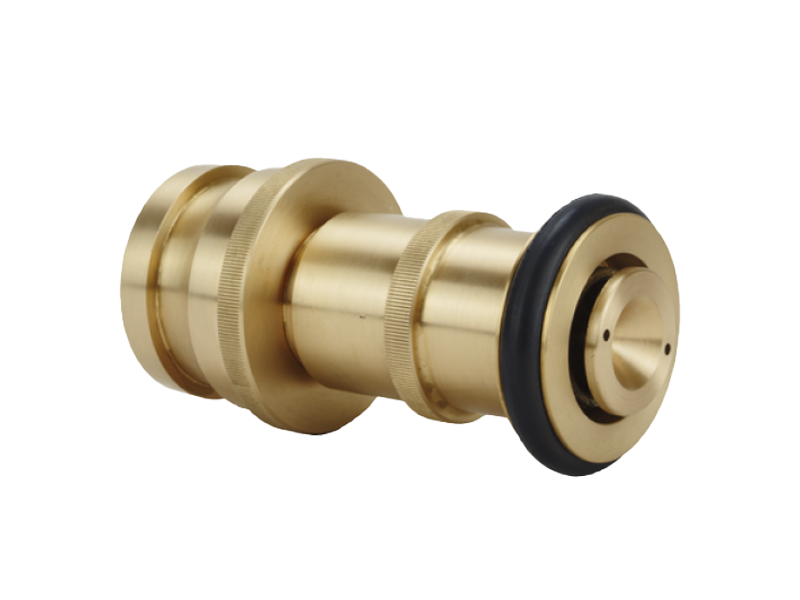

Jet/Spray Nozzle

This dual-pattern nozzle enables quick switching between a concentrated jet stream and a wide spray mist. Designed for flexible firefighting tactics, it enhances control over water or foam discharge and is suitable for use with hoses and fire monitors in indoor and outdoor fire suppression.

Key Features

Jet to spray pattern adjustable instantly

Corrosion-resistant aluminum or brass body

Compatible with most hose sizes and fire monitors

Ergonomic grip with twist/lever control

High flow rates for effective suppression

Most Effective For

Industrial Fires

Vehicle
Fires

High-Risk
Facilities

Interior
Attacks

Technical Specifications

Material	Aluminum / Brass / Stainless Steel
Inlet Connection	2.5” BSP / Instantaneous
Flow Rate	Up to 475 LPM
Operating Pressure	7 to 10 bar
Spray Angle	Up to 120°
Control Mechanism	Twist-Grip or Lever
Nozzle Patterns	Jet / Spray / Shut-off
Application	Water & Foam

Ideal Use

Commercial Complexes, Warehouses, Petrochemical Units, Roadside Emergencies

Vehicles

Stores

Fire Brigades

Industrial Units
